In daily life,people always thinking about how to complete tasks efficiently and with high quality. Also for flying-marking machine, our R&D always trying to promote the marking speed and the marking quality. Galvo solution is the most important for this, SOING's S series galvo scan head would be a great option.
SOING S series scan head is specially designed for high speed marking on-the-fly applications. lt delivers excellent dynamics and superior high speed in aminimum compact size.
With fully understanding the requirements of high speed applications, SOlNG designs the C type driver to work with the mini galvanometers. The S seriess can head delivers 1350 characters/sec.
1. Optimized for marking on-the-fly1350 characters/s writing speed ( height,FL=160mm)
2. Waterproof and dust proof for industrial conditions
3. XY2-100 standard interface
4. Top-Cap and Back-Cable lDC connector available
|
|
SPS85H |
SPS10H |
SPS14H |
|
|
8.5 |
10 |
14 |
|
|
±0.35 |
±0.35 |
±0.35 |
|
|
0.12 |
0.15 |
0.22 |
|
1% Of Full Scale |
0.2 |
0.3 |
0.35 |
|
10% Of Full Scale |
0.7 |
0.8 |
0.85 |
|
|
4 |
4 |
4 |
|
Long-terms Drift Over 8hours (mrad)¹ |
＜0.3 |
＜0.3 |
＜0.3 |
|
|
8000 |
7000 |
6000 |
|
|
20 |
20 |
15 |
|
|
1350 |
1200 |
1000 |
|
|
±15VDC/3A |
±15VDC/3A |
±15VDC/3A |
|
|
XY2-100 |
XY2-100 |
XY2-100 |
|
|
0.7 |
1.2 |
2.4 |
|
|

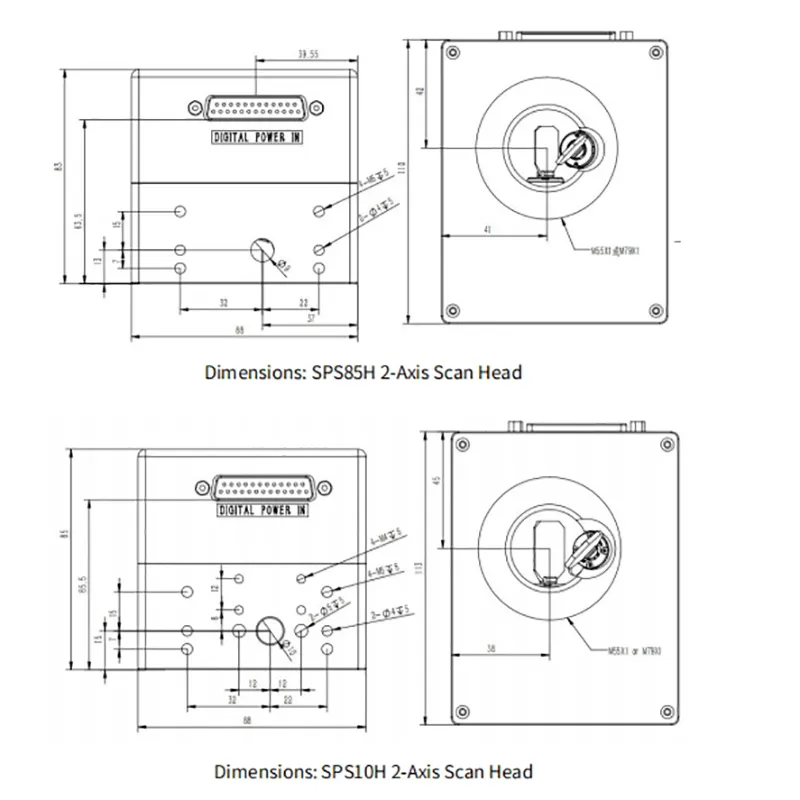

110x88x83 |
113x88x85 |
133.5x103.5x107.5 |
